QR Processing Server

I. Introduction

The QR Processing Server is a critical component of the Qranty system, responsible for generating QR codes for product tracking and warranty registration. This document provides an overview of the QR Processing Server, detailing its architecture, functionality, and interactions with other components of the system.

II. Packages

1. Dependencies

Package Name	Description	Link	Version
@shortcm/qr-image	QR Code image generation library	@shortcm/qr-image	^9.0.4
adm-zip	A Javascript implementation of zip for nodejs	adm-zip	^0.5.12
archiver	A library for creating zip and tar archives	archiver	^7.0.1
axios	Promise based HTTP client for the browser and node.js	axios	^1.6.7
bcrypt	A library to help you hash passwords	bcrypt	^5.1.1
bull	Premium Queue package for handling distributed jobs and messages in NodeJS	bull	^4.12.2
canvas	Node canvas is a Cairo backed Canvas implementation for NodeJS	canvas	^2.11.2
cors	Node.js CORS middleware	cors	^2.8.5
exceljs	Excel Workbook Manager for JavaScript	exceljs	^4.4.0
express	Fast, unopinionated, minimalist web framework for node	express	^4.18.2
fix-esm	A utility to fix ESM import/export issues	fix-esm	^1.0.1
get-stream	Get a stream as a string, buffer, or array	get-stream	^9.0.1
jsonwebtoken	JSON Web Token implementation for node.js	jsonwebtoken	^9.0.2
jspdf	PDF Document creation from JavaScript	jspdf	^2.5.1
mongoose	Elegant MongoDB object modeling for Node.js	mongoose	^8.2.0
multer	Node.js middleware for handling multipart/form-data	multer	^1.4.5-lts.1
pdf-lib	Create and modify PDF documents in JavaScript	pdf-lib	^1.17.1
pdfkit	A JavaScript PDF generation library for Node and the browser	pdfkit	^0.14.0
qrcode	QR code generator	qrcode	^1.5.3
redis	Redis client library	redis	^4.6.13
sharp	High-performance image processing in Node.js	sharp	^0.32.6
tar-stream	Streaming tar parser and generator	tar-stream	^3.1.7
zip-stream	Create zip archives on-the-fly	zip-stream	^6.0.1
zlib	A library for handling zip archives	zlib	^1.0.5

2. Dev Dependencies

Package Name	Description	Link	Version
@babel/cli	Babel command line	@babel/cli	^7.23.4
@babel/core	Babel compiler core	@babel/core	^7.23.7
@babel/node	Babel command line for Node.js	@babel/node	^7.22.19
@babel/plugin-proposal-class-properties	Babel plugin for class properties	@babel/plugin-proposal-class-properties	^7.18.6
@babel/plugin-proposal-object-rest-spread	Babel plugin for object rest/spread	@babel/plugin-proposal-object-rest-spread	^7.20.7
@babel/preset-env	Babel preset for compiling ES2015+	@babel/preset-env	^7.24.3
@types/adm-zip	TypeScript definitions for adm-zip	@types/adm-zip	^0.5.5
@types/archiver	TypeScript definitions for archiver	@types/archiver	^6.0.2
@types/bcrypt	TypeScript definitions for bcrypt	@types/bcrypt	^5.0.2
@types/bull	TypeScript definitions for bull	@types/bull	^4.10.0
@types/cors	TypeScript definitions for cors	@types/cors	^2.8.17
@types/crypto-js	TypeScript definitions for crypto-js	@types/crypto-js	^4.2.2
@types/express	TypeScript definitions for express	@types/express	^4.17.21
@types/jsonwebtoken	TypeScript definitions for jsonwebtoken	@types/jsonwebtoken	^9.0.5
@types/multer	TypeScript definitions for multer	@types/multer	^1.4.11
@types/pdfkit	TypeScript definitions for pdfkit	@types/pdfkit	^0.13.4
@types/qrcode	TypeScript definitions for qrcode	@types/qrcode	^1.5.5
@types/tar-stream	TypeScript definitions for tar-stream	@types/tar-stream	^3.1.3
dotenv	Loads environment variables from .env file	dotenv	^16.3.1
nodemon	Simple monitor script for use during development of a node.js app	nodemon	^3.0.2
pm2	Production process manager for Node.js applications with a built-in load balancer	pm2	^5.3.1
rimraf	A deep deletion module for node	rimraf	^5.0.5

III. Environment Variables

Variable Name	Description	Default Value
NODE_ENV	Environment mode	development
PORT	Port number for the server	3998
MONGODB_URL	MongoDB connection URL	mongodb://localhost:27017/qrantty?authsource=admin
REDIS_HOST	Redis host	localhost
REDIS_PORT	Redis port	6379
REDIS_PASSWORD	Redis password
PRIVATE_KEY	Private key for JWT token same as the private key in Transportation Server	Gcalls2023

IV. Source Tree

.
├── ecosystem.config.js - Configuration file for PM2 process manager
├── nodemon.json - Configuration file for Nodemon to manage file watching and automatic server restarts.
├── package.json - File defining the project's dependencies, scripts, and metadata.
├── package-lock.json - Auto-generated file that locks the dependencies to specific versions.
└── src - Source code directory.
    ├── app.js - Main application file.
    ├── configs - Configuration files for the application.
    │   └── index.js
    ├── logos - Stores logo images.
    │   ├── bomber.jpeg
    │   ├── brother.png
    │   └── index.js
    ├── middlewares - Middleware functions for handling requests and processing.
    │   ├── excelStorage.js
    │   ├── imageStorage.js
    │   ├── storeFile.js
    │   └── verify.js
    ├── models - Database models.
    │   ├── Company.js
    │   ├── Excels.js
    │   ├── File.js
    │   └── Models.js
    ├── routes - API route handlers.
    │   └── Excel.js
    ├── services - Service layer for business logic.
    │   ├── Excel.js
    │   ├── QR.js
    │   └── WarrantyFile.js
    ├── Storage - Storage-related functions and configurations.
    │   └── index.js
    └── utils - Utility functions and helper scripts.
        ├── CacheManager.js
        ├── index.js
        ├── PDFConvert.js
        ├── Queue
        │   ├── CompressQueue.js
        │   ├── ExcelQueue.js
        │   ├── ExportQueue.js
        │   ├── QrQueue.js
        │   └── ZipQueue.js
        ├── reducePDF.js
        ├── splitToChunks.js
        └── validateDomain.js

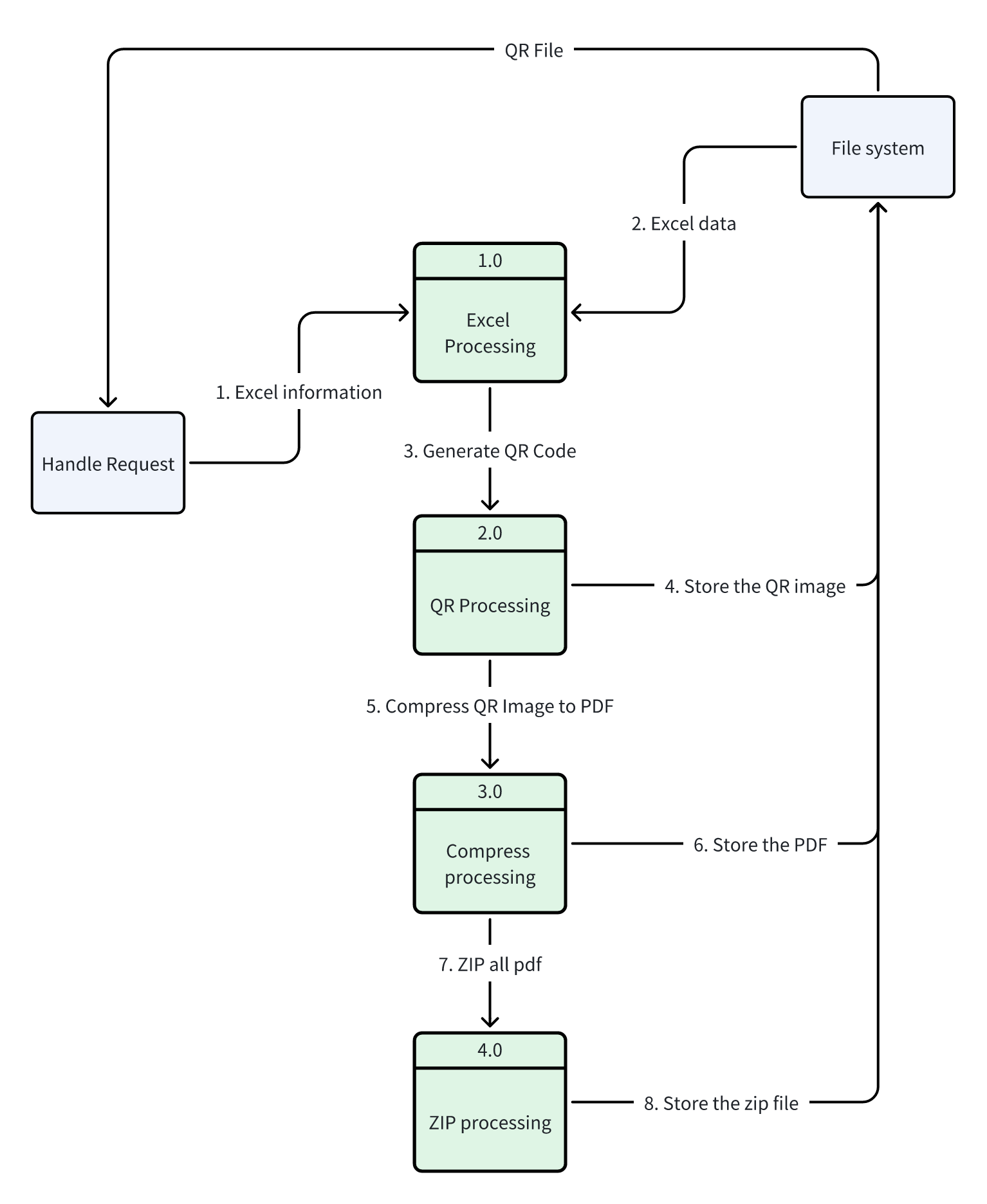

V. Data Flow Diagram
